REARVIEW MIRROR REMOVAL/INSTALLATION


id091200803100

1. Insert a tape-wrapped flathead screwdriver into the notch and pry with the screwdriver in the direction shown by the arrow to remove the covers. (Vehicles with auto wiper system)

2. Remove the covers. (Vehicles with auto wiper system)

3. Remove the rain sensor. (Vehicles with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

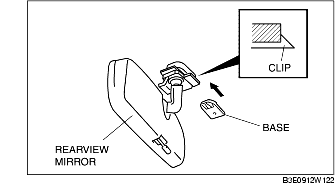

4. Remove the clip, and then remove the rearview mirror upward.

5. Install in the reverse order of removal.
