POWER DOOR LOCK SYSTEM CONSTRUCTION/OPERATION

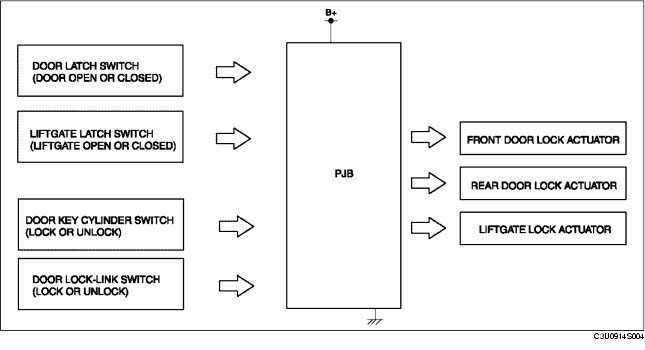

• Consists of the following parts;

- PJB

- Front door latch and lock actuator

- Rear door latch and lock actuator

- Liftgate latch and lock actuator (5HB)

- Door lock-link switch (built into the driver-side front door lock actuator)

- Door key cylinder switch (built into the driver-side front door lock actuator)

• Unlocking/locking of all doors and liftgate is performed by operation of the door key cylinder (door key cylinder switch) and driver-side door knob (door lock-link switch).
