FRONT DOOR LOCK ACTUATOR INSPECTION

id091400428700

1. Apply battery positive voltage and connect ground to the corresponding front door lock actuator terminals, and inspect the front door lock actuator operation.

• If not as specified, replace the front door latch and lock actuator.

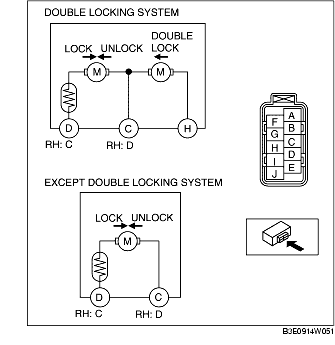

Lock actuator operation

Connection

B+

GND

Double lock
H
LH: C
RH: D
Lock
LH: D
RH: C
LH: C
RH: D
Unlock
LH: C
RH: D
LH: D
RH: C
