KEYLESS CONTROL MODULE INSPECTION


id091400806400

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).

• If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

2. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, perform symptom troubleshooting [KEYLESS ENTRY SYSTEM].

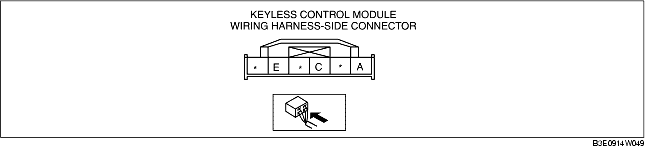

Terminal Voltage Table (Reference)

Terminal

Signal name

Connected to

Measured condition

Voltage (V)/Continuity

Inspection item(s)

A
Power supply
PJB
Under any condition
B+
• PJB
• Related wiring harnesses
C
Data
PJB
Under any condition: Inspect the wiring harness between the keyless control module and PJB terminal J-04 F for continuity.
Continuity detected
• PJB
• transmitter
• Related wiring harnesses
E
GND
Body ground
Under any condition: Inspect for continuity to ground.
Continuity detected
GND
