LIFTGATE KEY CYLINDER REMOVAL/INSTALLATION


id091400808300

1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

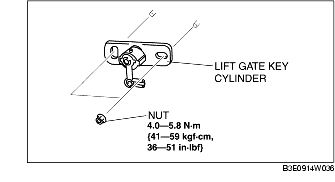

3. Remove the nuts.

4. Install in the reverse order of removal.
