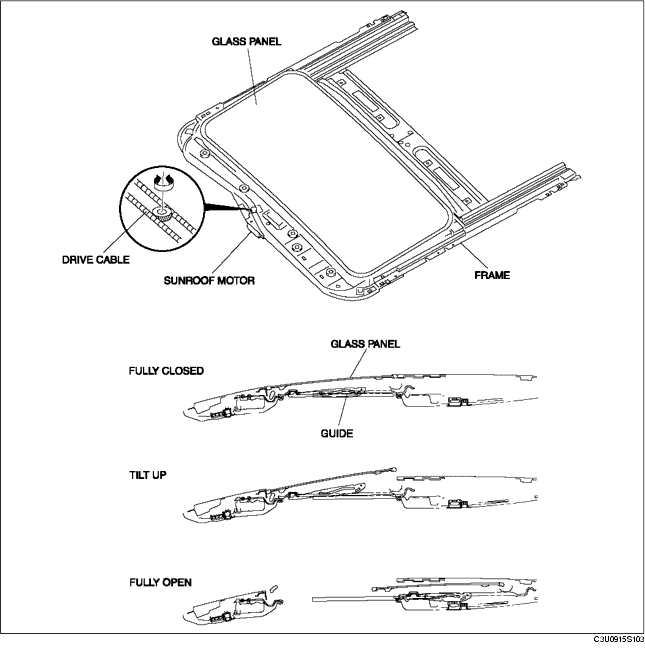

• Consists of a glass panel, frame and sunroof motor.
• The drive cables inside the frame are engaged with the sunroof motor drive gear so that when the motor rotates the drive cables also move.
• The guides are fixed to the glass panel so that the panel is moved by the drive cables sliding the guides.
