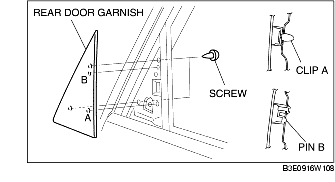

REAR DOOR GARNISH REMOVAL/INSTALLATION


id091600445700

1. Remove the sail garnish. (SeeSAIL GARNISH REMOVAL/INSTALLATION.)

2. Remove the screws.

3. Disengage clip A from the body by squeezing it from inside of the vehicle, and remove the rear door garnish.

4. Install in the reverse order of removal.
