REAR BELTLINE MOLDING REMOVAL/INSTALLATION


id091600447900

1. Fully lower the rear door glass.

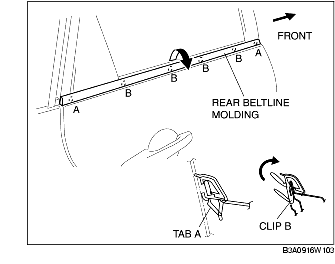

2. Raise the center of the rear beltline molding and detach tabs A.

3. Using a small flathead screwdriver, detach clip B and remove the rear beltline molding.

4. Install in the reverse order of removal.
