FRONT SCUFF PLATE REMOVAL/INSTALLATION


id091700457900

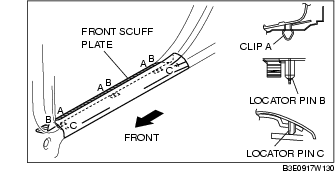

1. Pull the front scuff plate upward, detach clips A, locator pins B and C from the body, and then remove the front scuff plate.

2. Install in the reverse order of removal.
