REAR DOOR TRIM REMOVAL/INSTALLATION


id091700460000

1. Disconnect the negative battery cable. (vehicle with power window system)

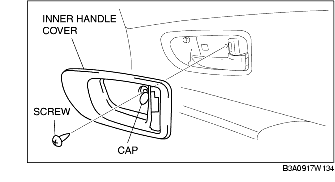

2. Using a small flathead screwdriver, open the cap and remove the screw.

3. Remove the inner handle cover.

4. Remove the sail garnish. (5HB) (See SAIL GARNISH REMOVAL/INSTALLATION.)

5. Remove the regulator handle. (vehicle without power window system) (See REGULATOR HANDLE REMOVAL.) (SeeREGULATOR HANDLE INSTALLATION.)

6. Using a small flathead screwdriver, open the cap and remove the screw.

7. Detach clips A from the front door using a fastener remover.

8. Pull the rear door trim upward and detach tabs B from the rear door.

9. Disconnect the power window subswitch connector. (vehicle with power window system)

10. Remove the rear door trim.

11. Install in the reverse order of removal.
