INNER GARNISH REMOVAL/INSTALLATION


id091700460500

1. Disconnect the negative battery cable.

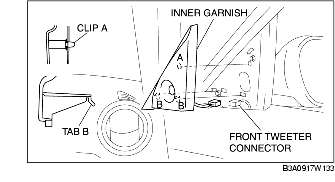

2. Pull the inner garnish outward and detach clip A.

3. Disconnect the front tweeter connector.

4. Detach the tabs B and remove the inner garnish.

5. Install in the reverse order of removal.
