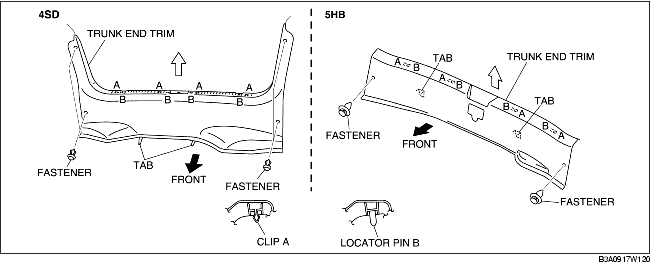

TRUNK END TRIM REMOVAL/INSTALLATION


id091700462400

1. Remove the fasteners.

2. Pull the trunk end trim upward, then detach clips A, locator pins B and tabs.

3. Remove the trunk end trim.

4. Install in the reverse order of removal.
