TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION


id091700803200

1. Disconnect the negative battery cable. (RH only)

2. Remove the rear seat belt lower bolt.

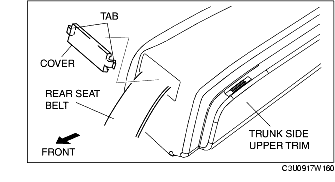

3. Detach the tabs, and remove the cover from the trunk side upper trim.

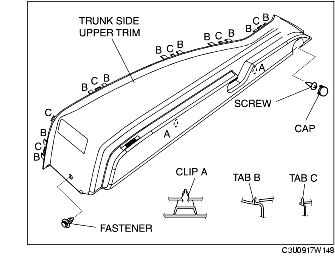

4. Remove the cap, and remove the screw.

5. Remove the fastener.

6. Pull the trunk side upper trim outward, then disengage tabs B and C from the C-pillar trim.

7. Pull the trunk side upper trim outward, then disengage clips A from the body.

8. Remove the rear seat belt.

9. Install in the reverse order of removal.
