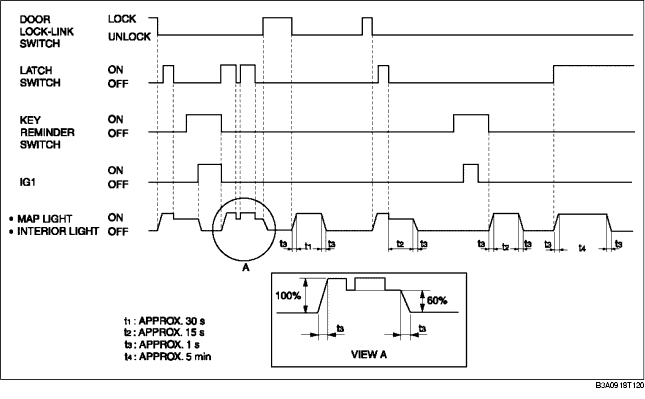

ROOM LIGHT CONTROL SYSTEM OPERATION

id091800101200

Conditions before operation

(Conditions which must be satisfied)

Operation condition

Interior light

Cancel condition

(When any condition satisfied)

Illumination time

Brightness

• Turn the ignition switch to the LOCK or ACC position.
• All doors are closed.
(All latch switches are off.)
Any door open. (Any latch switch is on.)
Approx.5 min
100 %
• All doors are closed except liftgate.
(Any latch switch is off except liftgate.)
• After illumination time.*1
• Key extracted from steering lock.
(Key reminder switch is off.)
• All doors are closed.
(All latch switches are off.)
• Driver's door lock knob is locked.
(Door lock-link switch is in lock position.)
Driver's door lock knob is unlocked.
(Door lock-link switch is in unlock position.)
Approx.30 s
60 %
• Turn the ignition switch to the ON position.
• Any door open except liftgate. (Any latch switch is on except liftgate.)
• Driver's door lock knob is locked.
(Door lock-link switch is in lock position.)
• After illumination time.*1
• Key inserted into steering lock.
(Key reminder switch is on.)
• All doors are closed.
(All latch switches are off.)
Key extracted from steering lock.
(Key reminder switch is off.)
Approx.15 s
60 %
• Turn the ignition switch to the ON position.
• Driver's door lock knob is locked.
(Door lock-link switch is in lock position.)
• After illumination time.*1
• Turn the ignition switch to the LOCK or ACC position.
• Any door open.
(Any latch switch is on.)
• Driver's door lock knob is unlocked.
(Door lock-link switch is in unlock position.)
All doors are closed.
(All latch switches are off.)
Approx.15 s
60 %
• Turn the ignition switch to the ON position.
• Any door open except liftgate. (Any latch switch is on except liftgate.)
• Driver's door lock knob is locked.
(Door lock-link switch is in lock position.)
• After illumination time.*1

*1 :
After interior light is turned off according to this cancel condition, the light will illuminate again when either of the following conditions are satisfied:

• After all doors are closed, then any door is reopened. (After all door switches are off, any door switch is on.)

• After all doors are closed, then ignition switch is at the ON position. (After all door switches are off, IG on.)
