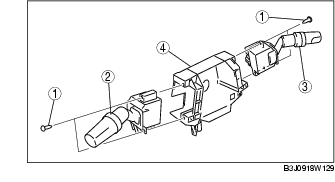

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY


id091800469300

1. Disassemble in the order indicated in the table.

1
Screw
2
Wiper and washer switch (LH)/Light switch (LH)
3
Light switch (RH)/Wiper and washer switch (RH)
4
Body

2. Assemble in the reverse order of disassembly.
