WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

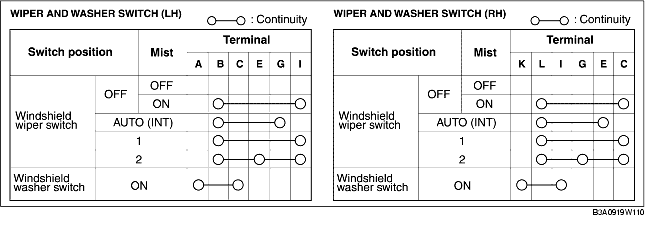

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

• If not as indicated in the table, replace the wiper and washer switch.

Vehicle without the auto wiper system

Vehicle with the auto wiper system

Vehicle without the auto wiper system

Vehicle with the auto wiper system
