AUDIO CONTROL SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the driver-side air bag module.(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3. Disconnect the audio control switch connector.

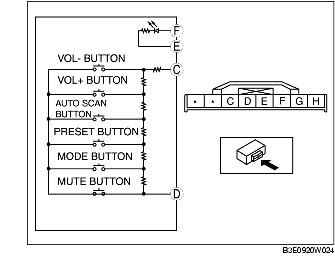

4. Verify the resistance and continuity between the audio control switch terminals.

• If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

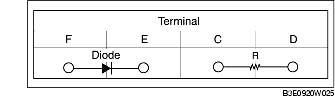

R :

Resistance. See the table.
