AUDIO UNIT DISASSEMBLY/ASSEMBLY


id092000800800

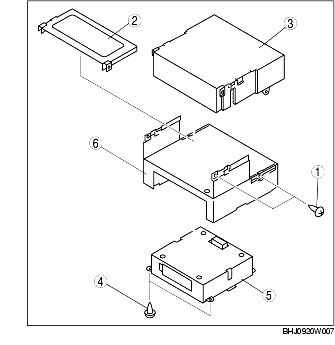

1. Disassemble in the order indicated in the table.

1
Screw
2
Cover (vehicles without the upper module)
3
Upper module
4
Screw
5
Lower module
6
Base unit

2. Assemble in the reverse order of disassembly.
