FRONT ANTENNA FEEDER INSPECTION


id092000801900

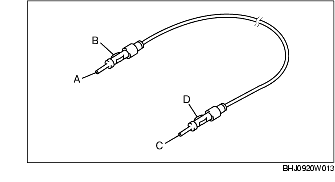

1. Verify that there is no continuity between the front antenna feeder terminal A and B.

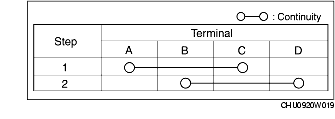

2. Verify that the continuity is as indicated in the table.

• If not as indicated in the table, replace the front antenna feeder.
