RELAY INSPECTION

id092100800300

Relay type

Terminal type

Part name

4 terminals
Type A
• Front fog light relay
• A/C relay
• Rear window defroster relay
• Fuel pump relay
• Horn relay
Type B
• Main relay
• Starter relay
• Blower relay

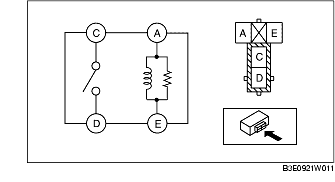

Type A

1. Verify the continuity between the relay terminals.

• If not as indicated in the table, replace the relay.

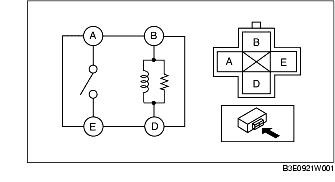

Type B

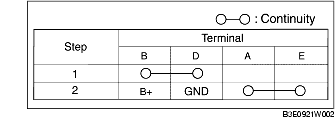

1. Verify the continuity between the relay terminals.

• If not as indicated in the table, replace the relay.
