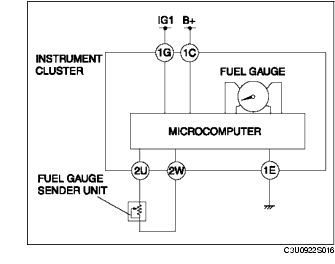

• A resistance according to fuel level is sent from the fuel gauge sender unit to the microcomputer. The microcomputer calculates the average resistance within a specified time, and sends the output signal to the fuel gauge based on the calculated value.
