TURN AND HAZARD INDICATOR ALARM CONSTRUCTION/OPERATION

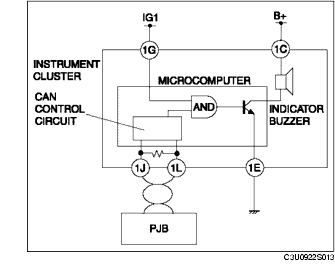

System Wiring Diagram

Operation

• The turn and hazard signal sent from the PJB via the CAN system is input to the microcomputer in the instrument cluster. The microcomputer sends an output signal to the turn indicator light and the indicator buzzer.
