HORN REMOVAL/INSTALLATION


id092200800900

1. Disconnect the negative battery cable.

2. Slightly bend back the mudguard.

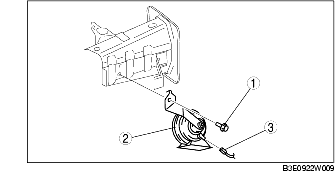

3. Remove in the order indicated in the table.

1
Bolt
2
Horn
3
Connector

4. Install in the reverse order of removal.
