DATA MONITORING AND RECORDING PROCEDURE
id092200801500

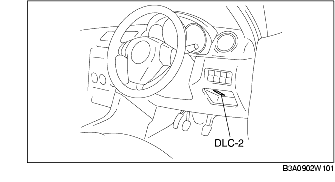

1. Connect the WDS or equivalent to the diagnostic connector 2 (16-pin).
2. Verify the data monitor items.
Indication Item Table
|
Monitor item
|
Input-output signal/part name
|
Unit/State
|
Terminal
|
|
CCNT_HE
|
DTC
|
Number of continuous DTCs
|
-
|
|
ECT_GAUGE
|
Water temperature gauge
|
°F
|
°C
|
1I, 1K
|
|
NUMKEYS
|
Number of key ID numbers registered with the vehicle
|
-
|
-
|
|
ODO COUNT
|
Odometer
|
m
|
1I, 1K
|
|
RPM
|
Tachometer
|
rpm
|
|
SPEEDSG
|
Speedometer
|
mph
|
km/h
|
