INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
id092200801600
-
Caution
-
• Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.

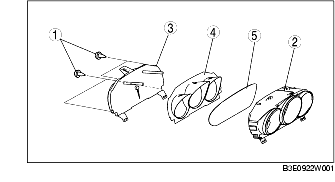

1. Disassemble in the order indicated in the table.
|
1
|
Screw
|
|
2
|
Cover
|
|
3
|
Instrument cluster unit
|
|
4
|
Hood
|
|
5
|
Lens
|
2. Assemble in the reverse order of disassembly.
