BODY COMPONENTS CONSTRUCTION

id098007739700

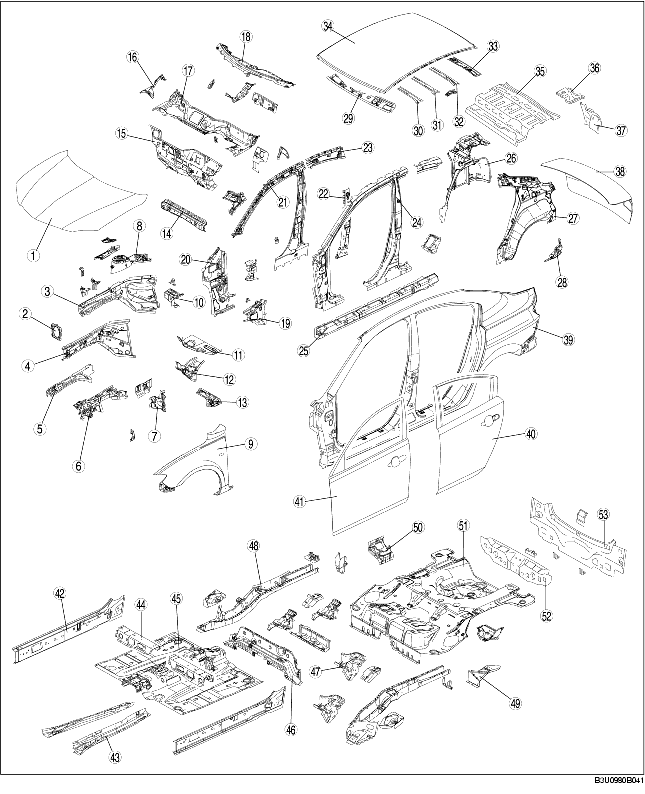

4SD

L.H.D.models

.

x:Applied
-:Not applied

No.

Part Name

High- tension steel

Rust proof steel

Thickness

(mm)

{in}

1
Bonnet
-
x
0.70
{0.028}
2
Front bumper bracket
x
x
2.90
{0.114}
3
Front side frame (inner)
x
x
1.60
{0.063}
4
Front side frame (outer)
x
x
1.60
{0.063}
5
Apron reinforcement (lower)
-
x
0.70
{0.028}
6
Apron reinforcement (upper)
-
x
1.00
{0.039}
7
Shroud side panel
x
x
1.00
{0.039}
8
Suspension housing
-
x
2.60
{0.102}
9
Front fender panel
x
x
0.65
{0.026}
10
Side member deck
-
x
1.80
{0.071}
11
Front frame rear reinforcement
x
x
0.80
{0.031}
12
Front frame (rear)
x
x
1.80
{0.071}
13
Torque box
-
x
1.60
{0.063}
14
Dash lower member
x
x
1.40
{0.055}
15
Dash lower panel

x
0.80
{0.031}
16
Wiper bracket
-
x
1.40
{0.055}
17
Dash upper panel
-
x
0.85
{0.033}
18
Cowl panel
-
x
0.80
{0.031}
19
Cowl side reinforcement
-
x
0.70
{0.028}
20
Hinge pillar (inner)
x
x
1.60
{0.063}
21
Front pillar (inner)
LH
x
-
1.40
{0.055}
RH
x
-
1.60
{0.063}
Center pillar (inner)
Upper
LH
x
-
1.60
{0.063}
RH
x
-
1.80
{0.071}
Center
x
-
1.20
{0.047}
Lower
x
-
1.00
{0.039}
22
Center pillar reinforcement (inner)
x
-
1.80
{0.071}
23
Roof rail (inner, rear)
x
-
1.00
{0.039}
24
Front pillar reinforcement
Upper
x
-
1.80
{0.071}
Lower
x
-
1.80
{0.071}
Center pillar reinforcement
Upper
x
-
1.40
{0.055}
Lower
x
-
1.20
{0.047}
25
Side sill reinforcement
x
-
1.40
{0.055}
26
Wheel house (inner)
-
x
0.70
{0.028}
27
Rear pillar (inner)
-
x
0.65
{0.026}
28
Rear fender lower panel
-
x
0.70
{0.028}
29
Front header
-
-
0.65
{0.026}
30
Roof reinforcement (front)
-
-
0.55
{0.021}
31
Roof reinforcement center
-
-
1.00
{0.039}
32
Roof reinforcement (rear)
-
-
1.00
{0.039}
33
Rear header
-
-
0.70
{0.028}
34
Roof panel
-
-
0.70
{0.028}
35
Package tray
-
-
0.60
{0.024}
36
Rear fender rain rail
-
x
0.70
{0.028}
37
Corner plate
-
x
0.70
{0.028}
38
Trunk lid panel
x
x
0.70
{0.028}
39
Side panel (outer)
-
x
0.70
{0.028}
40
Rear door
-
x
0.65
{0.026}
41
Front door
-
x
0.70
{0.028}
42
Side sill (inner)
x
x
1.40
{0.055}
43
Front B frame
x
x
0.90
{0.035}
44
Crossmember No.2
x
-
1.20
{0.047}
45
Front floor pan
-
x
0.70
{0.028}
46
Crossmember No.3
x
x
1.60
{0.063}
47
Crossmember No.4 gusset
-
x
1.40
{0.055}
48
Rear side frame
Front
x
x
2.00
{0.079}
Center
x
x
2.60
{0.102}
Rear
x
x
1.80
{0.071}
49
Crossmember No.3 (front)
-
x
1.60
{0.063}
50
Suspension housing
-
x
0.75
{0.030}
51
Rear floor pan
-
x
2.00
{0.079}
52
Rear end member
-
-
0.60
{0.024}
53
Rear end panel
-
x
0.60
{0.024}

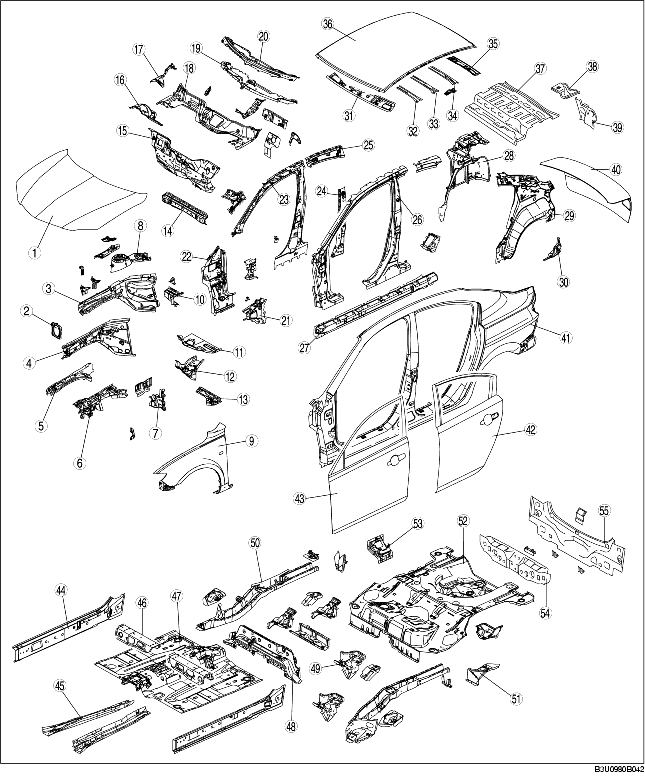

R.H.D.models

.

x:Applied
-:Not applied

No.

Part Name

High- tension steel

Rust proof steel

Thickness

(mm)

{in}

1
Bonnet
-
x
0.70
{0.028}
2
Front bumper bracket
x
x
2.90
{0.114}
3
Front side frame (inner)
x
x
1.60
{0.063}
4
Front side frame (outer)
x
x
1.60
{0.063}
5
Apron reinforcement (lower)
-
x
0.70
{0.028}
6
Apron reinforcement (upper)
-
x
1.00
{0.039}
7
Shroud side panel
x
x
1.00
{0.039}
8
Suspension housing
-
x
2.60
{0.102}
9
Front fender panel
x
x
0.65
{0.026}
10
Side member deck
-
x
1.80
{0.071}
11
Front frame rear reinforcement
x
x
0.80
{0.031}
12
Front frame (rear)
x
x
1.80
{0.071}
13
Torque box
-
x
1.60
{0.063}
14
Dash lower member
x
x
1.40
{0.055}
15
Dash lower panel

x
0.80
{0.031}
16
Cowl upper plate
-
x
0.80
{0.031}
17
Wiper bracket
-
x
1.40
{0.055}
18
Dash upper panel
-
x
0.85
{0.033}
19
Dash upper member
-
x
0.70
{0.028}
20
Cowl panel
-
x
0.80
{0.031}
21
Cowl side reinforcement
-
x
0.70
{0.028}
22
Hinge pillar (inner)
x
x
1.60
{0.063}
23
Front pillar (inner)
LH
x
-
1.40
{0.055}
RH
x
-
1.60
{0.063}
Center pillar (inner)
Upper
LH
x
-
1.60
{0.063}
RH
x
-
1.80
{0.071}
Center
x
-
1.20
{0.047}
Lower
x
-
1.00
{0.039}
24
Center pillar reinforcement (inner)
x
-
1.80
{0.071}
25
Roof rail (inner, rear)
x
-
1.00
{0.039}
26
Front pillar reinforcement
Upper
x
-
1.80
{0.071}
Lower
x
-
1.80
{0.071}
Center pillar reinforcement
Upper
x
-
1.40
{0.055}
Lower
x
-
1.20
{0.047}
27
Side sill reinforcement
x
-
1.40
{0.055}
28
Wheel house (inner)
-
x
0.70
{0.028}
29
Rear pillar (inner)
-
x
0.65
{0.026}
30
Rear fender lower panel
-
x
0.70
{0.028}
31
Front header
-
-
0.65
{0.026}
32
Roof reinforcement (front)
-
-
0.55
{0.021}
33
Roof reinforcement center
-
-
1.00
{0.039}
34
Roof reinforcement (rear)
-
-
1.00
{0.039}
35
Rear header
-
-
0.70
{0.028}
36
Roof panel
-
-
0.70
{0.028}
37
Package tray
-
-
0.60
{0.024}
38
Rear fender rain rail
-
x
0.70
{0.028}
39
Corner plate
-
x
0.70
{0.028}
40
Trunk lid panel
x
x
0.70
{0.028}
41
Side panel (outer)
-
x
0.70
{0.028}
42
Rear door
-
x
0.65
{0.026}
43
Front door
-
x
0.70
{0.028}
44
Side sill (inner)
x
x
1.40
{0.055}
45
Front B frame
x
x
0.90
{0.035}
46
Crossmember No.2
x
-
1.20
{0.047}
47
Front floor pan
-
x
0.70
{0.028}
48
Crossmember No.3
x
x
1.60
{0.063}
49
Crossmember No.4 gusset
-
x
1.40
{0.055}
50
Rear side frame
Front
x
x
2.00
{0.079}
Center
x
x
2.60
{0.102}
Rear
x
x
1.80
{0.071}
51
Crossmember No.3 (front)
-
x
1.60
{0.063}
52
Rear floor pan
-
x
0.75
{0.030}
53
Suspension housing
-
x
2.00
{0.079}
54
Rear end member
-
-
0.60
{0.024}
55
Rear end panel
-
x
0.60
{0.024}

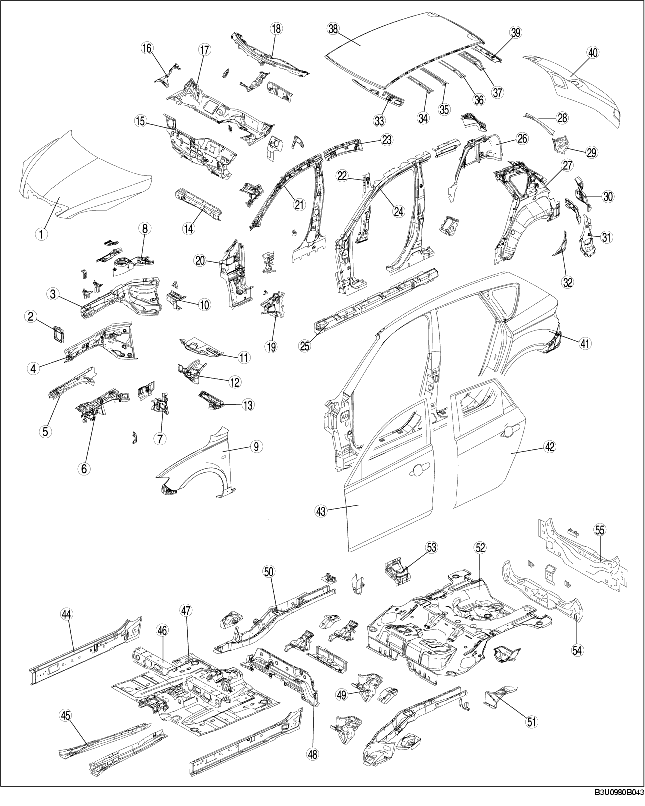

5HB

L.H.D.models

.

x:Applied
-:Not applied

No.

Part Name

High- tension steel

Rust proof steel

Thickness

(mm)

{in}

1
Bonnet
x
x
0.70
{0.028}
2
Front bumper bracket
x
x
2.90
{0.114}
3
Front side frame (inner)
x
x
1.60
{0.063}
4
Front side frame (outer)
x
x
1.60
{0.063}
5
Apron reinforcement (lower)
-
x
0.70
{0.028}
6
Apron reinforcement (upper)
-
x
1.00
{0.039}
7
Shroud side panel
x
x
1.00
{0.039}
8
Suspension housing
-
x
2.60
{0.102}
9
Front fender panel
x
x
0.65
{0.026}
10
Side member deck
-
x
1.80
{0.071}
11
Front frame rear reinforcement
x
x
0.80
{0.031}
12
Front frame (rear)
x
x
1.80
{0.071}
13
Torque box
-
x
1.60
{0.063}
14
Dash lower member
x
x
1.40
{0.055}
15
Dash lower panel

x
0.80
{0.031}
16
Wiper bracket
-
x
1.40
{0.055}
17
Dash upper panel
-
x
0.85
{0.033}
18
Cowl panel
-
x
0.80
{0.031}
19
Cowl side reinforcement
-
x
0.70
{0.028}
20
Hinge pillar (inner)
x
x
1.60
{0.063}
21
Front pillar (inner)
LH
x
-
1.40
{0.055}
RH
x
-
1.60
{0.063}
Center pillar (inner)
Upper
LH
x
-
1.60
{0.063}
RH
x
-
1.80
{0.071}
Center
x
-
1.20
{0.047}
Lower
x
-
1.00
{0.039}
22
Center pillar reinforcement (inner)
x
-
1.80
{0.071}
23
Roof rail (inner, rear)
x
-
1.00
{0.039}
24
Front pillar reinforcement
Upper
x
-
1.80
{0.071}
Lower
x
-
1.80
{0.071}
Center pillar reinforcement
Upper
x
-
1.40
{0.055}
Lower
x
-
1.20
{0.047}
25
Side sill reinforcement
x
-
1.40
{0.055}
26
Wheel house (inner)
-
x
0.70
{0.028}
27
Rear pillar (inner)
-
x
0.65
{0.026}
28
Rear pillar (outer)
-
x
0.70
{0.028}
29
Corner plate
-
x
0.70
{0.028}
30
Rear side panel
-
-
0.70
{0.028}
31
Rear pillar reinforcement
-
-
0.70
{0.028}
32
Rear fender lower panel
-
x
0.70
{0.028}
33
Front header
-
-
0.65
{0.026}
34
Roof reinforcement (front)
-
-
0.55
{0.021}
35
Roof reinforcement center (front)
-
-
1.00
{0.039}
36
Roof reinforcement center (rear)
-
-
0.75
{0.030}
37
Roof reinforcement (rear)
-
-
0.55
{0.021}
38
Rear header
-
-
0.75
{0.030}
39
Roof panel
-
-
0.75
{0.030}
40
Liftgate panel
-
x
0.70
{0.028}
41
Side panel (outer)
-
x
0.70
{0.028}
42
Rear door
-
x
0.65
{0.026}
43
Front door
x
x
0.70
{0.028}
44
Side sill (inner)
x
x
1.40
{0.055}
45
Front B frame
x
x
0.90
{0.035}
46
Crossmember No.2
x
-
1.20
{0.047}
47
Front floor pan
-
x
0.70
{0.028}
48
Crossmember No.3
x
x
1.60
{0.063}
49
Crossmember No.4 gusset
-
x
1.40
{0.055}
50
Rear side frame
Front
x
x
2.00
{0.079}
Center
x
x
2.60
{0.102}
Rear
x
x
1.80
{0.071}
51
Crossmember No.3 (front)
-
x
1.60
{0.063}
52
Rear floor pan
-
x
0.75
{0.030}
53
Suspension housing
-
x
2.00
{0.079}
54
Rear end member
-
-
1.20
{0.047}
55
Rear end panel
-
x
0.60
{0.024}

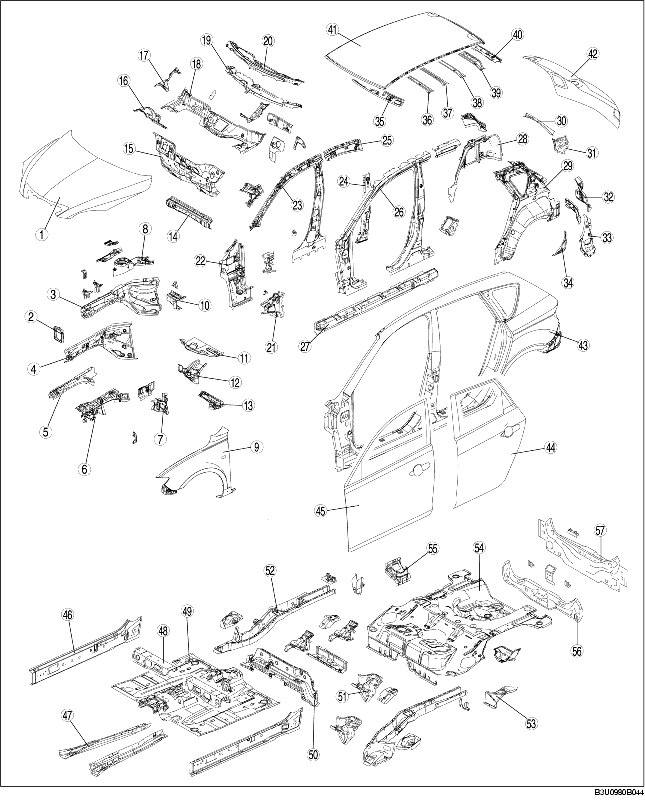

R.H.D.models

.

x:Applied
-:Not applied

No.

Part Name

High- tension steel

Rust proof steel

Thickness

(mm)

{in}

1
Bonnet
x
x
0.70
{0.028}
2
Front bumper bracket
x
x
2.90
{0.114}
3
Front side frame (inner)
x
x
1.60
{0.063}
4
Front side frame (outer)
x
x
1.60
{0.063}
5
Apron reinforcement (lower)
-
x
0.70
{0.028}
6
Apron reinforcement (upper)
-
x
1.00
{0.039}
7
Shroud side panel
x
x
1.00
{0.039}
8
Suspension housing
-
x
2.60
{0.102}
9
Front fender panel
x
x
0.65
{0.026}
10
Side member deck
-
x
1.80
{0.071}
11
Front frame rear reinforcement
x
x
0.80
{0.031}
12
Front frame (rear)
x
x
1.80
{0.071}
13
Torque box
-
x
1.60
{0.063}
14
Dash lower member
x
x
1.40
{0.055}
15
Dash lower panel

x
0.80
{0.031}
16
Cowl upper plate
-
x
0.80
{0.031}
17
Wiper bracket
-
x
1.40
{0.055}
18
Dash upper panel
-
x
0.85
{0.033}
19
Dash upper member
-
x
0.70
{0.028}
20
Cowl panel
-
x
0.80
{0.031}
21
Cowl side reinforcement
-
x
0.70
{0.028}
22
Hinge pillar (inner)
x
x
1.60
{0.063}
23
Front pillar (inner)
LH
x
-
1.40
{0.055}
RH
x
-
1.60
{0.063}
Center pillar (inner)
Upper
LH
x
-
1.60
{0.063}
RH
x
-
1.80
{0.071}
Center
x
-
1.20
{0.047}
Lower
x
-
1.00
{0.039}
24
Center pillar reinforcement (inner)
x
-
1.80
{0.071}
25
Roof rail (inner, rear)
x
-
1.00
{0.039}
26
Front pillar reinforcement
Upper
x
-
1.80
{0.071}
Lower
x
-
1.80
{0.071}
Center pillar reinforcement
Upper
x
-
1.40
{0.055}
Lower
x
-
1.20
{0.047}
27
Side sill reinforcement
x
-
1.40
{0.055}
28
Wheel house (inner)
-
x
0.70
{0.028}
29
Rear pillar (inner)
-
x
0.65
{0.026}
30
Rear pillar (outer)
-
x
0.70
{0.028}
31
Corner plate
-
x
0.70
{0.028}
32
Rear side panel
-
-
0.70
{0.028}
33
Rear pillar reinforcement
-
-
0.70
{0.028}
34
Rear fender lower panel
-
x
0.70
{0.028}
35
Front header
-
-
0.65
{0.026}
36
Roof reinforcement (front)
-
-
0.55
{0.021}
37
Roof reinforcement center (front)
-
-
1.00
{0.039}
38
Roof reinforcement center (rear)
-
-
0.75
{0.030}
39
Roof reinforcement (rear)
-
-
0.55
{0.021}
40
Rear header
-
-
0.75
{0.030}
41
Roof panel
-
-
0.75
{0.030}
42
Liftgate panel
-
x
0.70
{0.028}
43
Side panel (outer)
-
x
0.70
{0.028}
44
Rear door
-
x
0.65
{0.026}
45
Front door
x
x
0.70
{0.028}
46
Side sill (inner)
x
x
1.40
{0.055}
47
Front B frame
x
x
0.90
{0.035}
48
Crossmember No.2
x
-
1.20
{0.047}
49
Front floor pan
-
x
0.70
{0.028}
50
Crossmember No.3
x
x
1.60
{0.063}
51
Crossmember No.4 gusset
-
x
1.40
{0.055}
52
Rear side frame
Front
x
x
2.00
{0.079}
Center
x
x
2.60
{0.102}
Rear
x
x
1.80
{0.071}
53
Crossmember No.3 (front)
-
x
1.60
{0.063}
54
Rear floor pan
-
x
0.75
{0.030}
55
Suspension housing
-
x
2.00
{0.079}
56
Rear end member
-
-
1.20
{0.047}
57
Rear end panel
-
x
0.60
{0.024}
