REAR FENDER LOWER PANEL REMOVAL


id098008614100

4SD

1. Remove the rear fender lower panel.

5HB

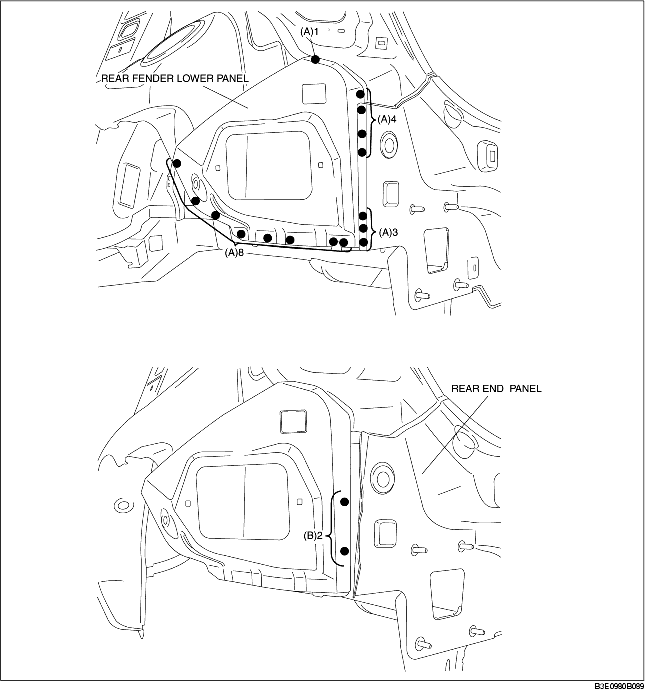

1. Drill the 16 locations indicated by (A).

2. Drill the 2 locations indicated by (B) and remove the rear fender lower panel.
