REAR FLOOR PAN REMOVAL

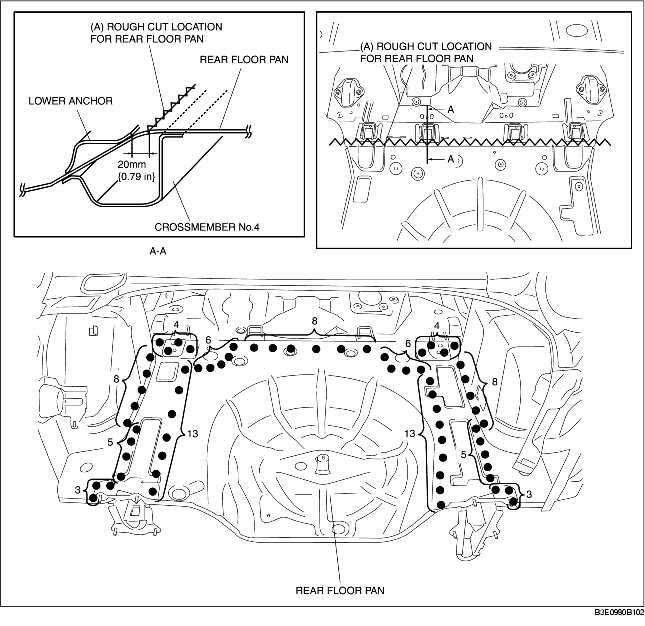

1. Rough cut area (A).

Caution

• When rough cutting area (A), cut 20mm {0.79 in} away from the flange (towards rear) at the rear of the lower anchor.

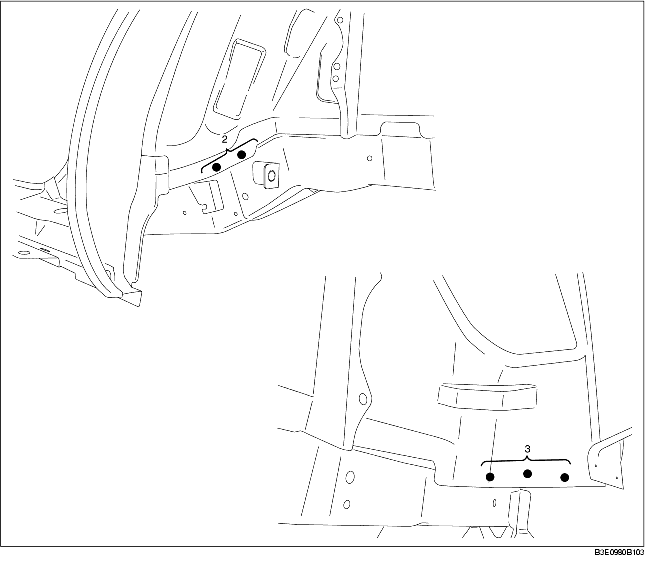

2. Remove the rear floor pan.
