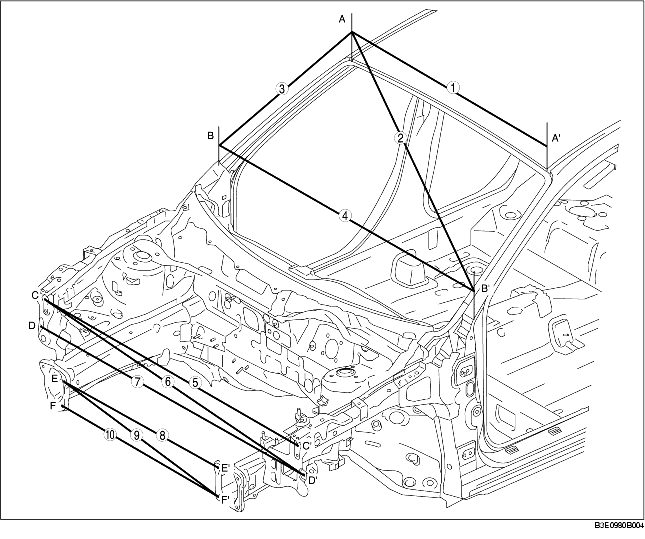

FRONT BODY STRAIGHT-LINE DIMENSIONS (1)

id098010740600

.

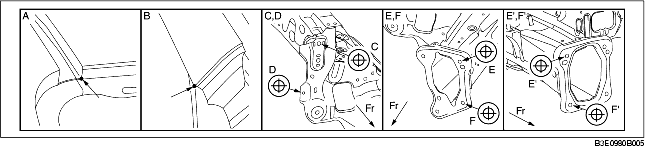

Measured location

Dimensions mm {in}

1
1,069 {42.09}
2
1,446 {56.93}
3
4SD:685 {26.97}, 5HB:684 {26.93}
4
4SD:1,518 {59.76}, 5HB:1,519 {59.80}
5
1,425 {56.10}
6
1,463 {57.60}
7
1,489 {58.62}
8
882 {34.72}
9
891 {35.08}
10
882 {34.72}
