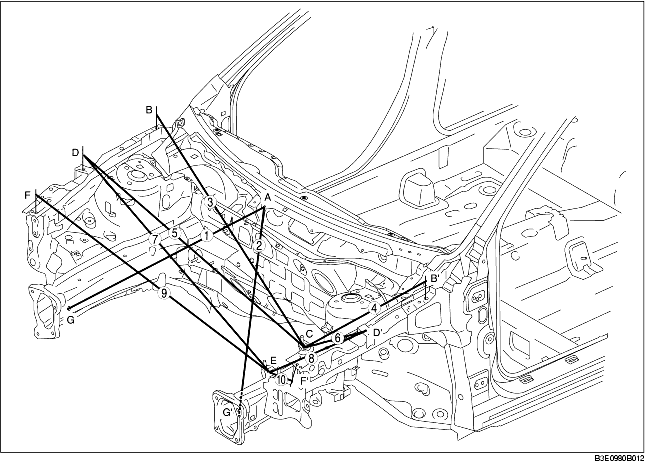

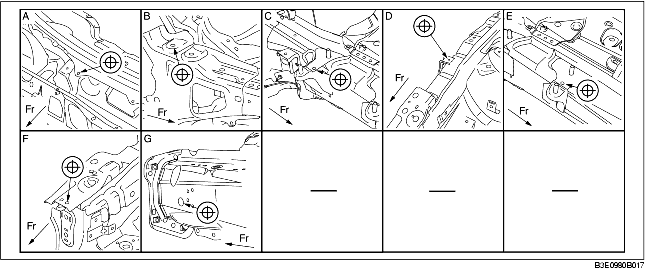

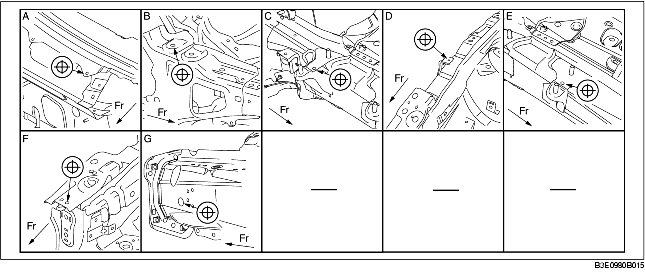

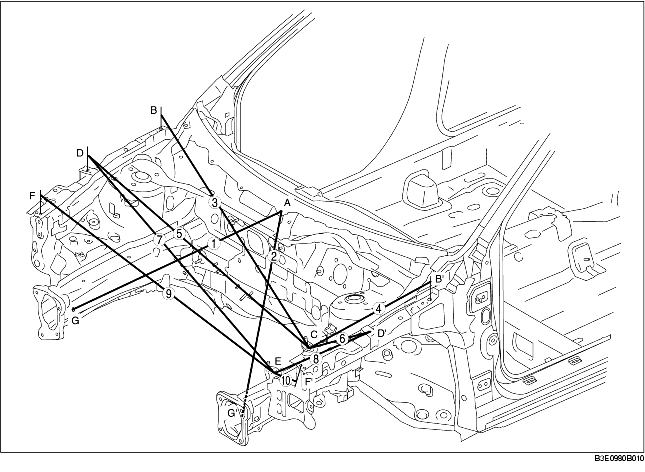

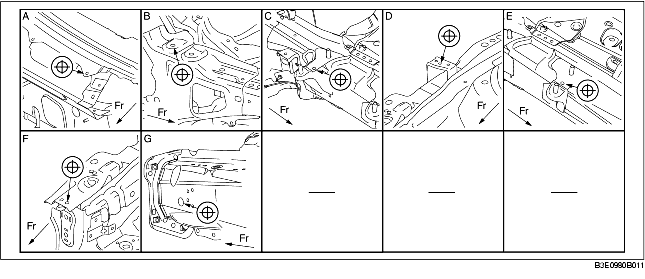

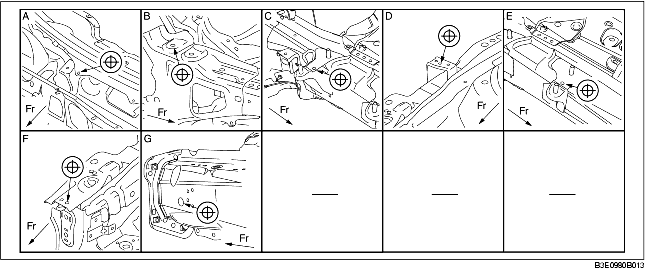

FRONT BODY STRAIGHT-LINE DIMENSIONS (3)


id098010740800

4SD

L.H.D.models

.

Measured location

Dimensions mm {in}

1
851 {33.50}
2
806 {31.73}
3
1,268 {49.92}
4
570 {22.44}
5
1,203 {47.36}
6
408 {16.06}
7
1,239 {48.78}
8
432 {17.01}
9
1,160 {45.67}
10
331 {13.03}

R.H.D.models

.

Measured location

Dimensions mm {in}

1
806 {31.73}
2
851 {33.50}
3
1,268 {49.92}
4
570 {22.44}
5
1,203 {47.36}
6
408 {16.06}
7
1,239 {48.78}
8
432 {17.01}
9
1,160 {45.67}
10
331 {13.03}

5HB

L.H.D.models

.

Measured location

Dimensions mm {in}

1
851 {33.50}
2
806 {31.73}
3
1,268 {49.92}
4
570 {22.44}
5
1,205 {47.44}
6
398 {15.67}
7
1,241 {48.86}
8
421 {16.57}
9
1,160 {45.67}
10
331 {13.03}

R.H.D.models

.

Measured location

Dimensions mm {in}

1
806 {31.73}
2
851 {33.50}
3
1,268 {49.92}
4
570 {22.44}
5
1,205 {47.44}
6
398 {15.67}
7
1,241 {48.86}
8
421 {16.57}
9
1,160 {45.67}
10
331 {13.03}
