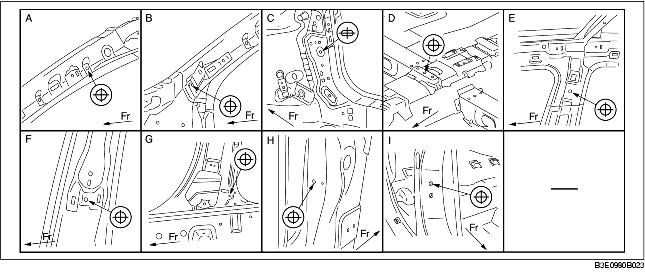

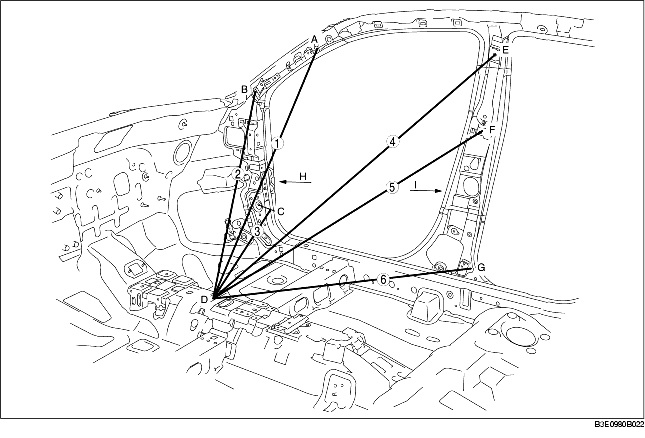

Measured location
|
Dimensions mm {in}
|
|---|---|
|
1
|
1,033 {40.67}
|
|
2
|
957 {37.68}
|
|
3
|
765 {30.12}
|
|
4
|
1,339 {52.72}
|
|
5
|
1,154 {45.43}
|
|
6
|
1,003 {39.49}
|
|
H-H'
|
1,485 {58.46}
|
|
I-I'
|
1,466 {57.72}
|
