ROOM STRAIGHT-LINE DIMENSIONS (2)

id098010743400

4SD

.

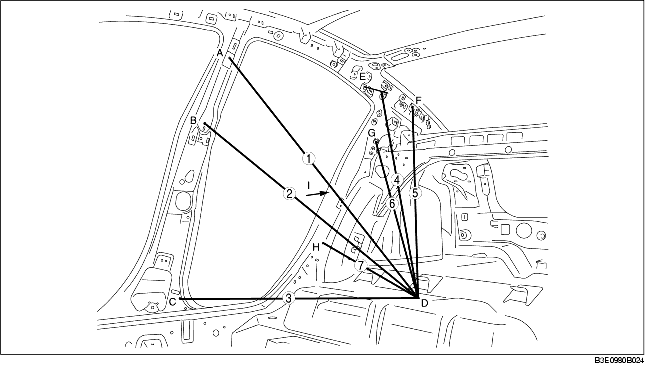

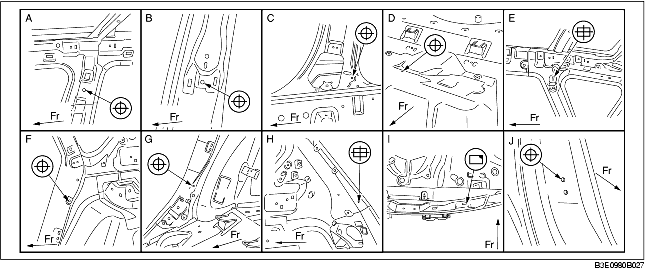

Measured location

Dimensions mm {in}

1
1,046 {41.18}
2
908 {35.75}
3
816 {32.13}
4
1,081 {42.56}
5
1,211 {47.68}
6
1,079 {42.48}
7
787 {30.98}
I-I'
1,510 {59.45}

5HB

.

Measured location

Dimensions mm {in}

1
1,046 {41.18}
2
908 {35.75}
3
816 {32.13}
4
1,088 {42.83}
5
928 {36.54}
6
787 {30.98}
7
1,328 {52.28}
8
1,373 {54.06}
J-J'
1,510 {59.45}
