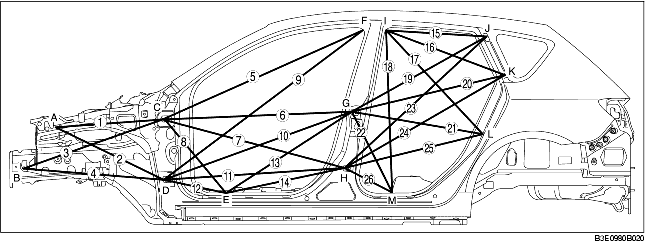

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS

id098010743600

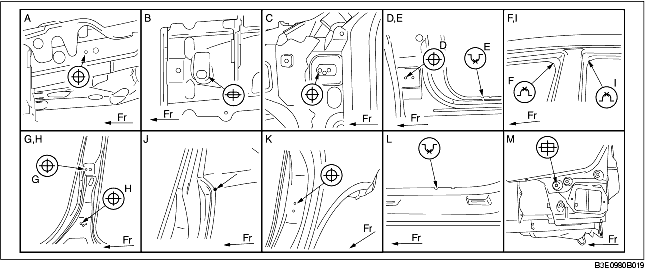

4SD

.

Measured location

Dimensions mm {in}

1
642 {25.28}
2
719 {28.31}
3
916 {36.06}
4
882 {34.72}
5
1,325 {52.17}
6
1,133 {44.61}
7
1,125 {44.29}
8
595 {23.43}
9
1,500 {59.06}
10
1,192 {46.93}
11
1,079 {42.48}
12
399 {15.71}
13
884 {34.80}
14
712 {28.03}
15
808 {31.81}
16
1,434 {56.46}
17
865 {34.06}
18
988 {38.90}
19
947 {37.28}
20
795 {31.30}
21
548 {21.57}
22
1,101 {43.35}
23
857 {33.74}
24
342 {13.46}
25
637 {25.08}
26
1,212 {47.72}

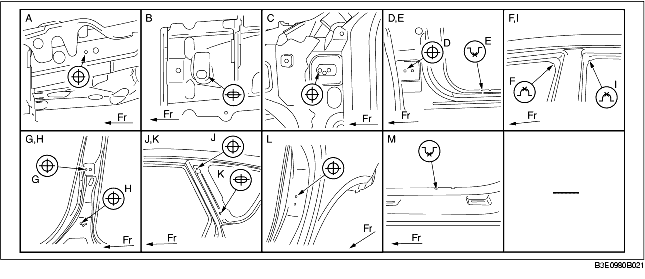

5HB

.

Measured location

Dimensions mm {in}

1
642 {25.28}
2
719 {28.31}
3
916 {36.06}
4
882 {34.72}
5
1,325 {52.17}
6
1,133 {44.61}
7
1,125 {44.29}
8
595 {23.43}
9
1,500 {59.06}
10
1,192 {46.93}
11
1,079 {42.48}
12
399 {15.71}
13
884 {34.80}
14
712 {28.03}
15
598 {23.54}
16
766 {30.16}
17
865 {34.06}
18
988 {38.90}
19
930 {36.61}
20
939 {36.97}
21
795 {31.30}
22
548 {21.57}
23
1,162 {45.75}
24
1,108 {43.62}
25
857 {33.74}
26
342 {13.46}
