REAR BODY STRAIGHT-LINE DIMENSIONS

id098010748200

4SD

.

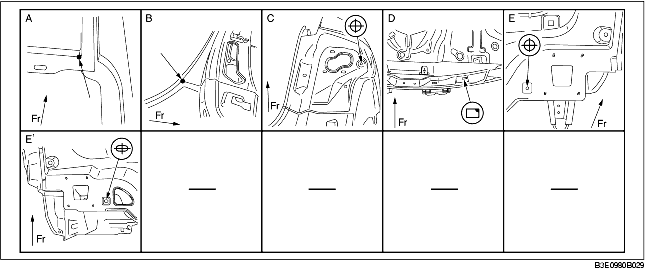

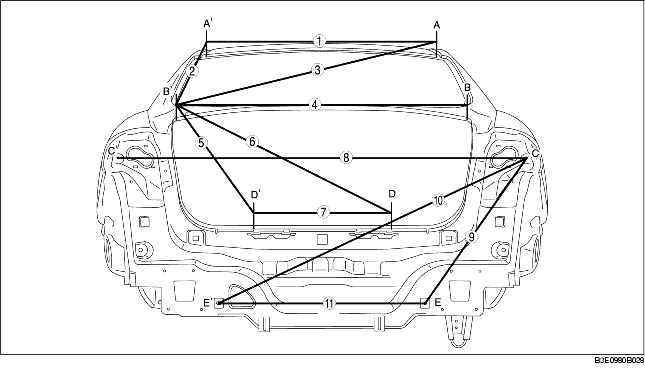

Measured location

Dimensions mm {in}

1
1,007 {39.65}
2
781 {30.75}
3
1,190 {46.85}
4
800 {31.50}
5
425 {16.73}
6
851 {33.50}
7
679 {26.73}
8
1,436 {56.54}
9
620 {24.41}
10
1,191 {46.89}
11
720 {28.35}

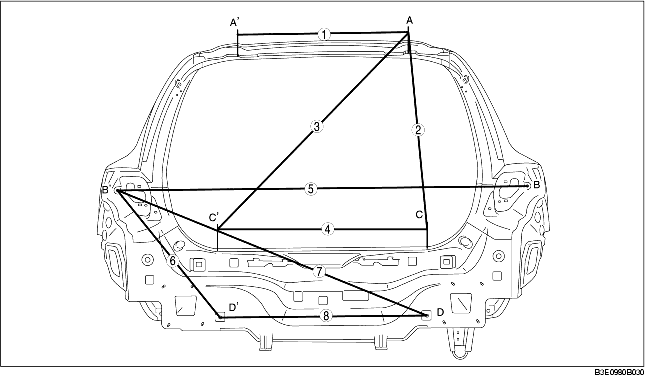

5HB

.

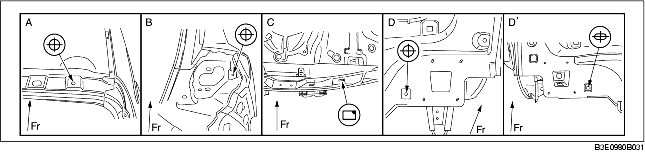

Measured location

Dimensions mm {in}

1
700 {27.56}
2
871 {34.29}
3
1,114 {43.86}
4
688 {27.09}
5
1,474 {58.03}
6
596 {23.46}
7
1,190 {46.85}
8
720 {28.35}
