CYLINDER HEAD DISASSEMBLY (I) [MZR-CD 2.2]

id0110f2500400

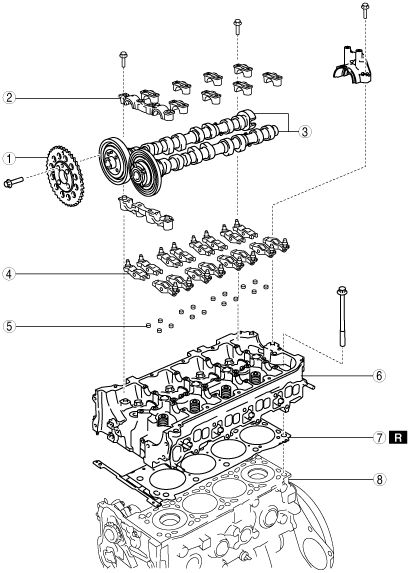

1.  Disassemble in the order indicated in the table.

bem5ze00000075

1	Exhaust camshaft sprocket (See Exhaust Camshaft Sprocket Removal Note.)
2	Camshaft cap (See Camshaft Cap Removal Note.)
3	Camshaft
4	Rocker arm
5	Valve cap
6	Cylinder head (See Cylinder Head Removal Note.)
7	Cylinder head gasket
8	Cylinder block

Exhaust Camshaft Sprocket Removal Note

1.  Hold the camshaft by using a wrench on the cast hexagon as shown, and loosen the exhaust camshaft sprocket installation bolts.

bem5ze00000106

Camshaft Cap Removal Note

1.  Before removing the camshaft caps, inspect the following:

―  Camshaft end play and camshaft journal oil clearance. (See CAMSHAFT INSPECTION [MZR-CD 2.2].)

Note

•  The camshaft caps are numbered to make sure they are assembled in their original positions. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.

2.  Loosen the camshaft caps bolts in 2—3 passes in the order shown in the figure.

am6zzw00004255

Cylinder Head Removal Note

1.  Remove the bolt shown in the figure.

am6zzw00004298

2.  Loosen the bolts in two or three steps in the order shown in the figure.

am6zzw00004258
