CYLINDER BLOCK ASSEMBLY (I) [MZR-CD 2.2]
id0110f2504000

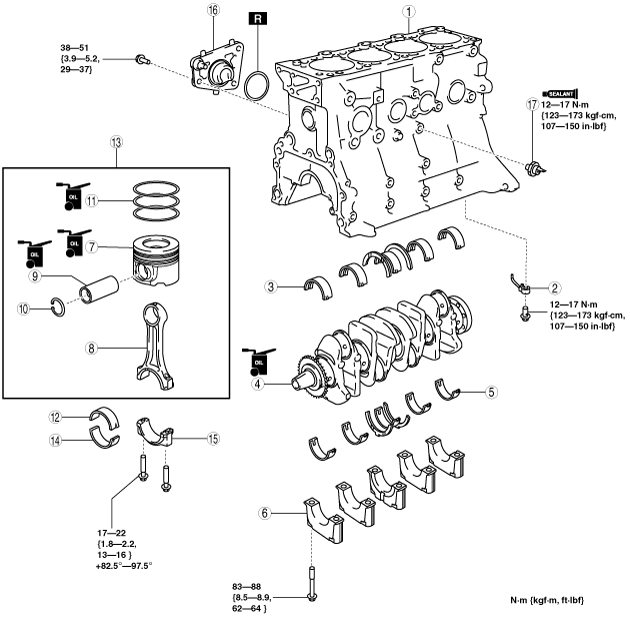

1. Assemble in the order indicated in the table.
bem5ze00000115
|
|
1
|
Cylinder block
|
|
2
|
Oil jet
|
|
3
|
Upper main bearing, thrust bearing
|
|
4
|
Crankshaft
|
|
5
|
Lower main bearing, thrust bearing
|
|
6
|
Main bearing cap
|
|
7
|
Piston
(See Piston Assembly Note.)
|
|
8
|
Connecting rod
|
|
9
|
Piston pin
|
|
10
|
Snap ring
|
|
11
|
Piston ring
(See Piston Ring Assembly Note.)
|
|
12
|
Upper connecting rod bearing
|
|
13
|
Connecting rod, piston
|
|
14
|
Lower connecting rod bearing
|
|
15
|
Connecting rod cap
|
|
16
|
Cover
|
|
17
|
Oil pressure switch
|
Main Bearing Cap Assembly Note

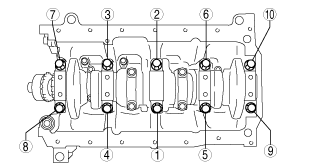

1. Tighten the bolts in the order shown in the figure.
bem5ze00000116
|
Piston Assembly Note

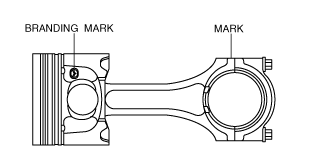

1. Assemble the piston and the connecting rod in the direction from which they were disassembled.
2. Apply clean engine oil to the piston pin.
3. Install the piston pin until the pin contacts the clip. If the pin cannot be installed easily, heat the piston.
bem5ze00000117
|
Piston Ring Assembly Note

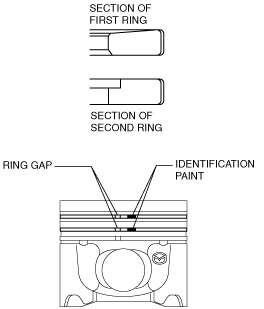

1. Install the first and second rings as shown in the figure.
bem5ze00000118
|
Connecting Rod, Piston Assembly Note
1. Insert the piston and connecting rod into the cylinder with the branding mark facing the front of the engine.
bem5ze00000119
|
Connecting Rod Cap Assembly Note

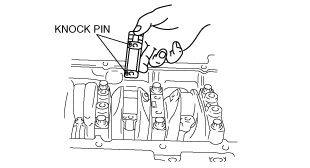

1. Install the connecting rod caps with the knock pins aligned.
bem5ze00000120
|
Oil Pressure Switch Installation Note
1. Apply silicone sealant to the oil pressure switch threads as shown in the figure.
