CYLINDER HEAD ASSEMBLY (II) [MZR-CD 2.2]

id0110f2504400

1.  Assemble in the order indicated in the table.

bem5ze00000091

1
Cylinder block
2
Cylinder head gasket
3
Cylinder head
(See Cylinder Head Installation Note.)
4
Valve cap
5
Rocker arm
(See Rocker Arm Installation Note.)
6
Camshaft
(See Camshaft Installation Note.)
7
Camshaft cap
(See Camshaft Cap Installation Note.)
8
Exhaust camshaft sprocket
(See Exhaust Camshaft Sprocket Installation Note.)


Cylinder Head Installation Note

1.  Measure the length of each cylinder head bolt.

•  Replace any that exceeds maximum length.
am6zzw00004294
Cylinder head bolt length
Standard : 163.4—164.0 mm {6.434—6.456 in}
Maximum : 164.7 mm {6.484 in}

2.  Apply sealant as shown in the figure.

Caution
•  Install the cylinder head before the applied sealant starts to harden.
am6zzw00004259
Thickness
4—8 mm {0.2—0.3 in}

3.  Tighten the bolts using the following procedure.

(1)  Tighten the bolts in the order indicated in the figure in 5 steps.However, use the SST (49 D032 316) in Steps 3, 4 and 5.
am6zzw00004256
Tightening torque
1 : 29 N·m {3.0 kgf·m, 21 ft·lbf}
2 : 29 N·m {3.0 kgf·m, 21 ft·lbf}
3 : 90°—105°
4 : 90°—105°
5 : 90°—105°
(2)  Tighten the bolt shown in the figure.
am6zzw00004299


Rocker Arm Installation Note

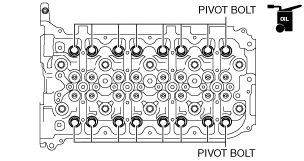

1.  Apply engine oil to the dented surface of the pivot bolt for the adjust screw.

bem5ze00000159

2.   Install the rocker arms.


Camshaft Installation Note

1.  Apply the gear oil (SAE No.90 or equivalent) to each journal of the cylinder head.

2.  Apply engine oil to the sliding surface of the exhaust camshaft drive gear and the intake camshaft driven gear.

3.  Align the gear marks of the exhaust camshaft drive gear and the intake camshaft driven gear and install the parts to the cylinder head.

bem5ze00000146

4.  Apply the gear oil (SAE No.90 or equivalent) to each journal of the camshaft.


Camshaft Cap Installation Note

1.  Apply adhesive as shown in the figure.

Caution
•  Install the camshaft cap before the applied adhesive starts to harden.
bem5ze00000107
Thickness
2—4 mm {0.08—0.15 in}

2.  Tighten the bolts in three or more steps in the order shown in the figure.

bem5ze00000160

Tightening torque
1—16 : 12—14 N·m {123—142 kgf·cm, 107—123 in·lbf}
17—22 : 19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}


Exhaust Camshaft Sprocket Installation Note

1.  Hold the exhaust camshaft by using a wrench on the cast hexagon as shown.

bem5ze00000104

2.  Tighten the exhaust camshaft sprocket installation bolts diagonally.

Tightening torque
29—39 N·m {3.0—3.9 kgf·m, 22—28 ft·lbf}
