PRESSURE CONTROL SOLENOID A (LINEAR TYPE) OPERATION
D6E051721101A08

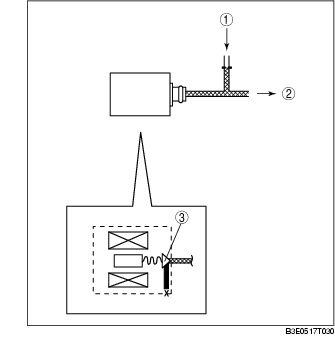

• By changing the electrical current value (0 A-1 A) inside the solenoid, the pressure control solenoid A adjusts the hold power of the hold pressure valve, controlling the pressure control solenoid pressure to the prescribed hydraulic pressure.
|
1
|
Solenoid reducing pressure
|
|
2
|
To pressure regulator valve
|
|
3
|
Hold pressure valve
|
|
1
|
Hydraulic pressure
|
|
2
|
Electrical current value
|
|
3
|
Pressure control solenoid pressure
|
