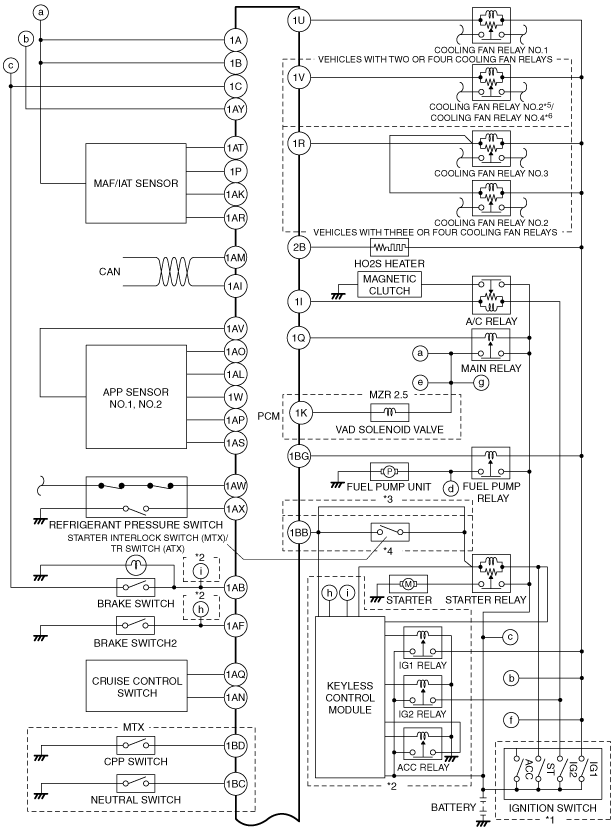

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZR 1.8, MZR 2.0, MZR 2.5]


id0102f4800100

am6zzw00007334
am6zzw00007335
*1  :Vehicles without advanced keyless entry and push button start system
*2  :Vehicles with advanced keyless entry and push button start system
*3  :Vehicles without starter interlock switch (MTX)
*4  :Vehicles with starter interlock switch (MTX) or ATX
