OBD DRIVE MODE [MZR 2.0 DISI]

id0102f5815800

• Performing the Drive Mode inspects the OBD system for proper operation and must be performed to ensure that no additional DTCs are present.

• During the Drive Mode, the following systems are inspected:

― EGR system

― Oxygen sensor (A/F sensor, HO2S)

― Oxygen sensor heater (A/F sensor heater, HO2S heater)

― Catalytic converter (TWC)

― Fuel system and Misfire

Caution

• While performing the Drive Mode, always operate the vehicle in a safe and lawful manner.

• When the M-MDS is used to observe monitor system status while driving, be sure to have another technician with you, or record the data in the M-MDS using the PID/DATA MONITOR AND RECORD function and inspect later.

Note

• Vehicle speed and engine speed detected by the PCM may differ from that indicated by the speedometer and tachometer. Use the M-MDS to monitor vehicle speed.

• If the OBD system inspection is not completed during the Drive Mode, the following causes are considered:

― The OBD system detected a malfunction.

― The Drive Mode procedure was not completed correctly.

• Disconnecting the battery will reset the memory. Do not disconnect the battery during and after the Drive Mode.

• The M-MDS can be used at anytime through the course of the Drive Mode to monitor the completion status. Monitoring can be done by viewing the ON BOARD SYSTEM READINESS menu.

Mode 03 (EGR System, A/F Sensor Heater, HO2S Heater, A/F Sensor, HO2S and TWC Repair Verification Drive Mode)

1. Start the engine and warm it up completely.

2. Verify that all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

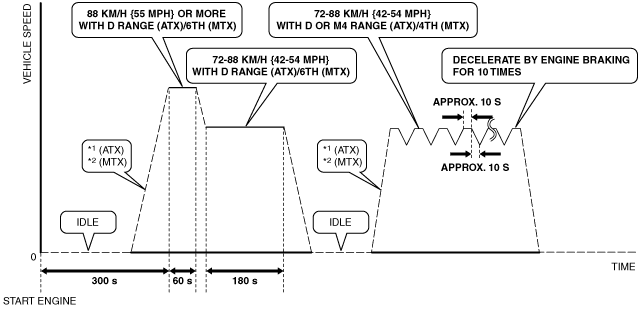

3. Drive the vehicle as shown in the graph. The driving conditions before driving at constant speed are not specified.

am6zzw00007348

*1 :Accelerate to 88 km/h {55 mph} or more or 72—88 km/h {42—54 mph} while in D range and with an accelerator opening angle of 30% or more.

*2 :Shift to 6th gear until reaching 50 km/h {31 mph}, and then accelerate to 88 km/h {55 mph} or more or 72—88 km/h {42—54 mph} at an accelerator opening angle of 50% or more.

4. Stop the vehicle and access ON BOARD SYSTEM READINESS to inspect the Drive Mode completion status.

• If completed, RFC changes from No to Yes.

• If not completed, switch the ignition to off then go back to Step 3.

5. Verify that no DTCs are available.
