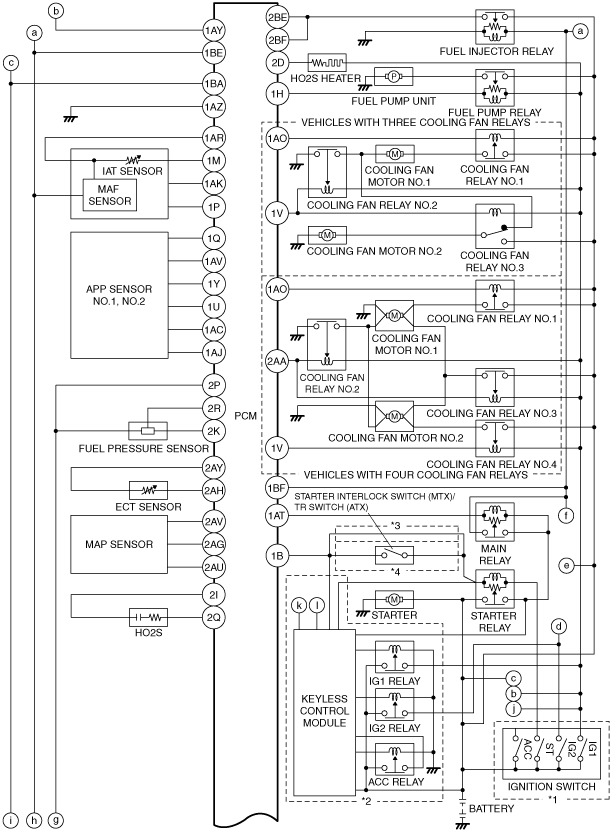

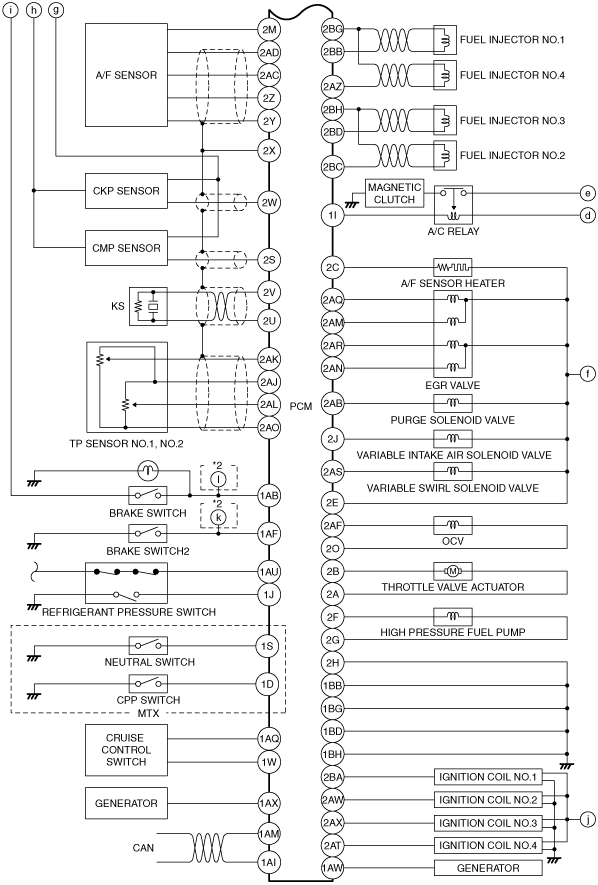

SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [MZR 2.0 DISI]
id0103d5800100
*1 :Vehicles without advanced keyless entry and push button start system
*2 :Vehicles with advanced keyless entry and push button start system
*3 :Vehicles without starter interlock switch (MTX)
*4 :Vehicles with starter interlock switch (MTX) or ATX
