NO.1 MELTING OF MAIN OR OTHER FUSES [MZR-CD 2.2]

id0103f3800700

1	MELTING OF MAIN OR OTHER FUSES

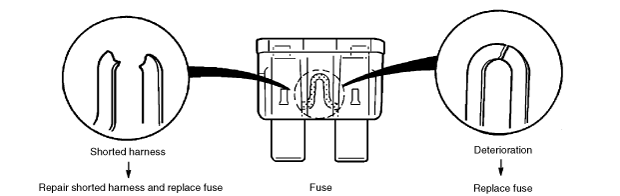

[TROUBLESHOOTING HINTS] Inspect condition of fuse.

Damaged fuse	Related wiring harness
MAIN	•  MAIN fuse ―  BTN fuse ―  FAN fuse ―  AD FAN fuse ―  IG KEY2 fuse ―  Generator
BTN	•  BTN fuse ―  ROOM fuse
ROOM	•  ROOM fuse ―  DLC-2
IG KEY2	•  IG KEY2 fuse ―  Starter relay
FAN	•  FAN fuse ―  Cooling fan relay No.1 ―  Cooling fan relay No.4
AD FAN	•  AD FAN fuse ―  Cooling fan relay No.3
ENGINE IG	•  ENGINE IG fuse ―  Cooling fan relay No.1 ―  Cooling fan relay No.2 ―  Cooling fan relay No.3 ―  PCM
F.WARMER	•  F.WARMER fuse ―  Fuel warmer
GLOW	•  GLOW fuse ―  GLOW SIG fuse ―  Glow plug
GLOW SIG	•  GLOW SIG fuse ―  PCM
ENGINE+B	•  ENGINE+B fuse ―  PCM
EGI	•  EGI fuse ―  Main relay ―  Keyless control module (Vehicles with advanced keyless entry and push button start system)
FUEL PCM	•  FUEL PCM fuse ―  PCM
INJ	•  INJ fuse ―  A/F sensor (heater) ―  MAF/IAT sensor ―  Variable boost control solenoid valve ―  EGR cooler bypass valve control solenoid valve
