PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5]

id011005803900

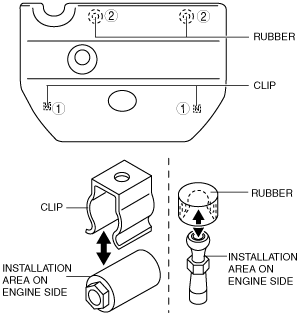

1.  Remove the plug hole plate in the order indicated in the figure.

Note

•  Lift off and remove the plug hole plate from the installation areas as shown in the figure.

am6zzw00005154

2.  Install the plug hole plate in the reverse order of removal.
