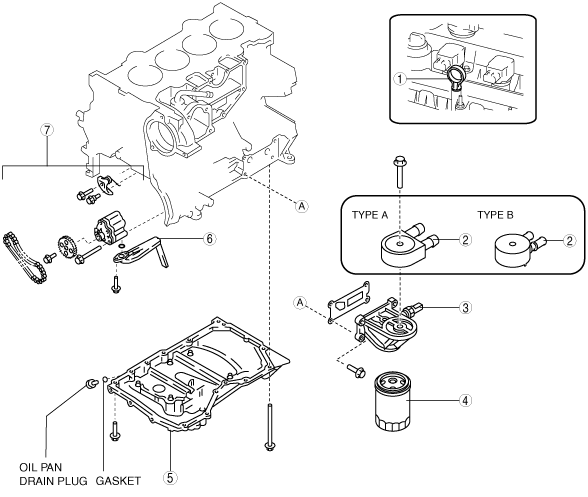

LUBRICATION SYSTEM LOCATION INDEX [MZR 2.0 DISI]

id0111d5800100

am6zzw00007323

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZR 2.0 DISI].) (See ENGINE OIL REPLACEMENT [MZR 2.0 DISI].)
2	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZR 2.0 DISI].)
3	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR 2.0 DISI].)
4	Oil filter (See OIL FILTER REPLACEMENT [MZR 2.0 DISI].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR 2.0 DISI].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI].)
