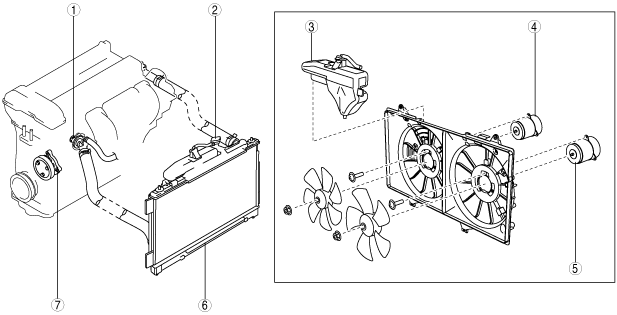

COOLING SYSTEM LOCATION INDEX [MZR 2.0 DISI]

id0112c5800100

am6zzw00007012

1	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See THERMOSTAT INSPECTION [MZR 2.0 DISI].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [MZR 2.0 DISI].)
3	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [MZR 2.0 DISI].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR 2.0 DISI].)
4	Cooling fan motor No.2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See COOLING FAN MOTOR INSPECTION [MZR 2.0 DISI].)
5	Cooling fan motor No.1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See COOLING FAN MOTOR INSPECTION [MZR 2.0 DISI].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [MZR 2.0 DISI].) (See ENGINE COOLANT REPLACEMENT [MZR 2.0 DISI].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 2.0 DISI].) (See RADIATOR REMOVAL/INSTALLATION [MZR 2.0 DISI].)
7	Water pump (See WATER PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI].)
