COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR-CD 2.2]

id0112f3801900

Warning

•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1.  Disconnect the negative battery cable.

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZR-CD 2.2].)

4.  Remove the dipstick.

5.  Remove the boost sensor. (See COMMON RAIL REMOVAL/INSTALLATION [MZR-CD 2.2].)

6.  Remove the air cleaner and charge air cooler air hose (inlet and outlet). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

9.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)

10.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR-CD 2.2].)

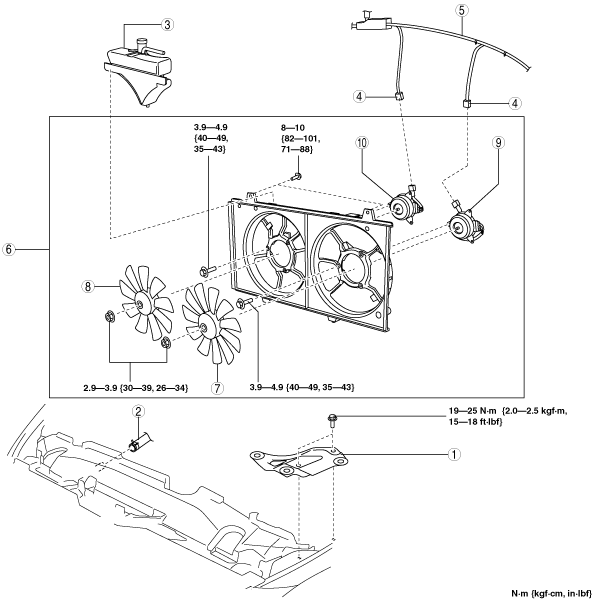

am6zzw00004403

1	Air cleaner bracket
2	Upper radiator hose
3	Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR-CD 2.2].)
4	Cooling fan motor connector
5	Wiring harness
6	Cooling fan component (See Cooling Fan Component Removal Note.)
7	Cooling fan No.1
8	Cooling fan No.2
9	Cooling fan motor No.1
10	Cooling fan motor No.2

Cooling Fan Component Removal Note

1.  Remove the lower radiator hose stay bolt.

am6zzw00007035

2.  Remove the cooling fan component from above the engine compartment.

am6zzw00002340
