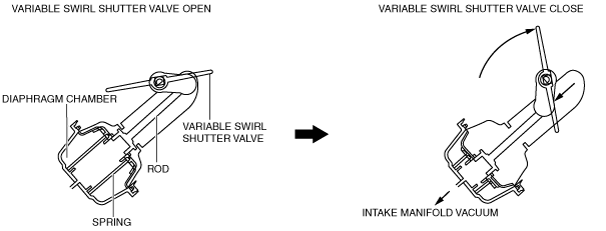

•  Mainly consists of the body, rod and diaphragm chamber spring.

•  Normally, the spring force presses against the rod, keeping the variable swirl shutter valve open. When vacuum is applied to the diaphragm chamber from the intake manifold, the rod is pulled, closing the variable swirl shutter valve.
