GLOW PLUG INSPECTION [MZR-CD 2.2]

id0113f3804300

1.  Remove the glow plug cord. (See GLOW PLUG REMOVAL/INSTALLATION [MZR-CD 2.2].)

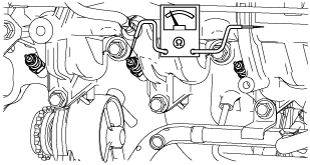

2.  Measure the resistance between the glow plug terminal and the cylinder head or intake manifold (body ground).

am6zzw00004120

Glow plug resistance (Reference value)
Approx. 1.0 ohm [20°C {68°F}]
•  If not as specified, replace the glow plug. (See GLOW PLUG REMOVAL/INSTALLATION [MZR-CD 2.2].)
