FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]
id0114f2777900

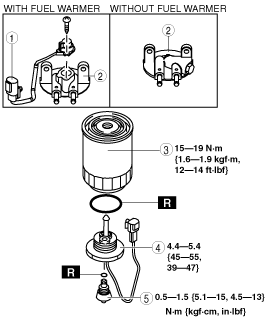

1. Disassemble in the order indicated in the table.
L.H.D.
am6zzw00003989
|
|
1
|
Fuel warmer (with fuel warmer)
|
|
2
|
Fuel filter body
|
|
3
|
Fuel filter
|
|
4
|
Sedimentor switch
|
|
5
|
Drain plug
|
R.H.D.
am6zzw00003990
|
|
1
|
Fuel filter body
|
|
2
|
Fuel filter
|
|
3
|
Sedimentor switch
|
|
4
|
Drain plug
|
2. Assemble in the reverse order of removal.
Fuel Filter Installation Note
1. Apply a small amount of fuel to the fuel filter O-ring.
2. Tighten the fuel filter approx. 3/4 by hand after the O-ring contacts the priming pump.
