PURGE SOLENOID VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5]

id0116d3800900

Airflow inspection

1.  Disconnect the negative battery cable.

2.  Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

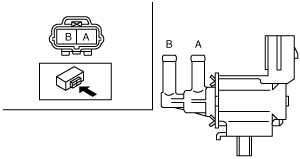

3.  Inspect airflow between the ports under the following conditions.

am6zzw00005225

am6zzw00005226

•  If not as specified, replace the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
